Fixed Ratio Beam Expanders for High Power Lasers

Fixed Ratio Beam Expanders for High Power Lasers

Beam expanders suitable for high power laser applications: IBS-coated lenses, high transmission, low-GDD optics. Designed for 1030+1064 nm, 515+532 nm or 343+355 nm laser wavelengths. Fixed magnifications from 1.5X to 10X available. Sliding lens design.

from 495 $
delivery Estimated delivery time: 4 - 5 days
Products
Specifications
Brochures
Description
DWL
Expansion
Remove all filters
Designed for 1030+1064 nm, coating R<0.1% @ 1000 – 1080 nm
Code DWL Expansion Input Aperture Max Input Beam Output Aperture Price Delivery Add to cart
i 161-1.5X-1H 1030 nm 1.5X 11.0 mm 11.0 mm 22.8 mm 495 $ Request
i 161-2X-1H 1030 nm 2X 11.0 mm 9.0 mm 22.8 mm 495 $ Request
i 161-3X-1H 1030 nm 3X 11.0 mm 9.0 mm 34.5 mm 605 $ Request
i 161-5X-1H 1030 nm 5X 10.0 mm 4.5 mm 34.5 mm 605 $ 4 - 5 days
i 161-7.5X-1H 1030 nm 7.5X 8.0 mm 3.5 mm 36.0 mm 737 $ Request
i 161-10X-1H 1030 nm 10X 8.0 mm 3.0 mm 36.0 mm 737 $ Request
Designed for 515+532 nm, coating R<0.1% @ 500 – 535 nm
Code DWL Expansion Input Aperture Max Input Beam Output Aperture Price Delivery Add to cart
i 161-1.5X-2H 515 nm 1.5X 11.0 mm 11.0 mm 22.8 mm 495 $ 4 - 5 days
i 161-2X-2H 515 nm 2X 11.0 mm 9.0 mm 22.8 mm 495 $ Request
i 161-3X-2H 515 nm 3X 11.0 mm 9.0 mm 34.5 mm 605 $ Request
i 161-5X-2H 515 nm 5X 10.0 mm 4.5 mm 34.5 mm 605 $ 4 - 5 days
i 161-7.5X-2H 515 nm 7.5X 8.0 mm 3.5 mm 36.0 mm 737 $ 4 - 5 days
i 161-10X-2H 515 nm 10X 8.0 mm 3.0 mm 36.0 mm 737 $ Request
Designed for 343+355 nm, coating R<0.2% @ 340 – 355 nm
Code DWL Expansion Input Aperture Max Input Beam Output Aperture Price Delivery Add to cart
i 161-1.5X-3H 343 nm 1.5X 11.0 mm 11.0 mm 22.8 mm 583 $ 4 - 5 days
i 161-2X-3H 343 nm 2X 11.0 mm 9.0 mm 22.8 mm 583 $ Request
i 161-3X-3H 343 nm 3X 11.0 mm 9.0 mm 34.5 mm 693 $ Request
i 161-5X-3H 343 nm 5X 10.0 mm 4.5 mm 34.5 mm 693 $ Request
i 161-7.5X-3H 343 nm 7.5X 8.0 mm 3.5 mm 36.0 mm 825 $ Request
i 161-10X-3H 343 nm 10X 8.0 mm 3.0 mm 36.0 mm 825 $ Request
Transmitted Wavefront Distortion (TWD) λ/6 at 633 nm
Focus Range 1.7 -
Laser Damage Threshold 1064 nm: >10 J/cm2, 10 ns pulse, 10 Hz
532 nm: >7 J/cm2, 10 ns pulse, 10 Hz
355 nm: >5 J/cm2, 10 ns pulse, 10 Hz

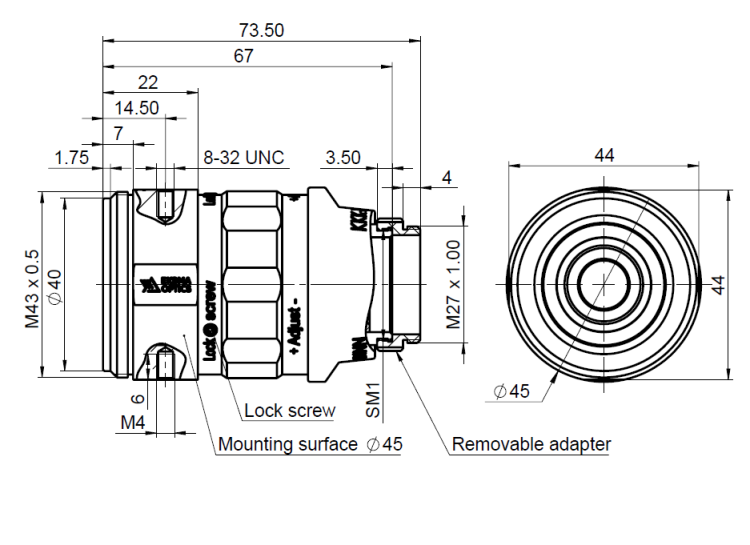

Input Thread SM1 external
Output Thread M43×0.5 external
Mounting Options M43×0.5, SM1, M27, M4, 8-32 UNC



EKSMA Optics Fixed Ratio Beam Expanders
175.53 kB
download PDF
  • Designed for high power laser applications:
    • IBS-coated UV FS thin lenses
    • High total transmission: >99%
    • Low GDD: relative pulse broadening <20%
  • AR-coated for: 1030/1064 nm, 515/532 nm, 343/355 nm
  • Fixed magnifications from 1.5X to 10X
  • Divergence adjustment: non-rotating optics, sliding lens design

EKSMA Optics offers Galilean type beam expanders with thin UV FS lenses suitable for femtosecond applications. Fixed Ratio Beam Expanders are designed to increase the diameter of a collimated input high power laser beam to a larger collimated output beam. Fixed Ratio Beam Expanders can be adjusted for the input beam divergence angle to obtain collimated, divergent or focused beam at the output. They feature non-rotating divergence adjustment by sliding lens design.
