Ultra-High Resolution Compact Motorized Actuator with Vacuum Compatible DC motor 970-0067V

Ultra-High Resolution Compact Motorized Actuator with Vacuum Compatible DC motor 970-0067V

13 mm or 25 mm travel range, lead screw pitch is 0.25 mm, max. speed is 0.15 mm/s, cable: integrated, 2 m length.

Request
delivery Estimated delivery time: 2 - 3 weeks
Products
Specifications
Brochures
Description

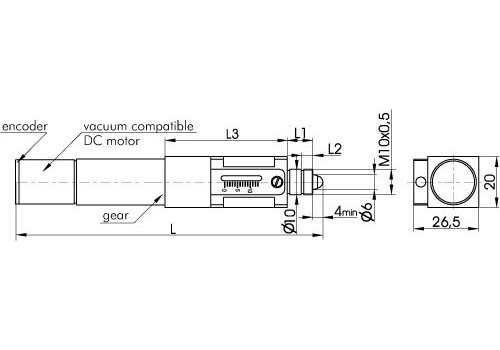

Code L2 L1 L3 L Price Delivery Add to cart
970-0067V-13 7 mm 15 mm 50 mm 125...138 mm Request Request
970-0067V-25 7 mm 15 mm 60 mm 135...160 mm Request Request
Model 970-0067V-13 970-0067V-25
Travel range 13 mm 25 mm
Minimum Incremental Motion 0.028 µm
Lead screw pitch
0.25 mm
Max. speed
0.15 mm/s
Nominal force
30 N
Cable
integrated, 2 m length
Motor connector
HDB15(M)
Vacuum compatible DC motor DCE1841
Weight 0.12 kg 0.15 kg
970-0067V Ultra-High Resolution Compact Motorized Actuator with Vacuum Compatible DC Motor
243.82 kB
download PDF
  • 13 mm or 25 mm travel range
  • Lead screw pitch is 0.25 mm
  • Max. speed is 0.15 mm/s
  • Cable: integrated, 2 m length
  • Non-vacuum version

Motorized actuators mostly used in mirror and optical mounts for remote fine adjustment. Field of application limited only by creativity of the user. Actuator body is made from aluminum. Actuators are cleaned in vacuum chamber before packing and shipping.
