Motorized Variable Attenuator for Linearly Polarized Laser Beam 990-0070M

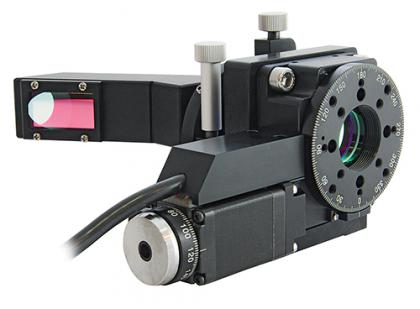

This Motorized Variable Attenuator / Beamsplitter consists of special design Opto-mechanical Adapter and Precision Opto-mechanical Holder 840-0193. Two Thin Film Brewster type polarizers, which reflect s-polarized light while transmitting p-polarized light, are housed into the Adapter. Quartz Half Waveplates are housed in Motorized Rotation Stage 960-0161.



The intensity ratio of those two beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. P-polarization could be selected for maximum transmission, or high-purity s-polarization could be reflected when maximum attenuation of the transmitted beam takes place. The holder 840-0193 allows to adjust angle of incidence of the Thin Film Brewster type polarizers by ±2° and to get the maximum polarization contrast.


Note: Controllers and Power supllies should be ordered separately.




Delivery

Estimated delivery time: from 4 - 5 days

Wavelength

For Nd:YAG Laser Application

Multi order half waveplate is housed in Motorized Rotation Stage 960-0161 and Polarizer with adapter in Kinematic Optical Mount 840-0193 for Nd:YAG laser application (laser damage threshold: 5 J/cm², 10 ns pulses, 10 Hz at 1064 nm, typical)

Code Wavelength Price Delivery Add to cart
990-0070-266M 266 nm 1793 $ Request To cart
990-0070-355M 355 nm 1683 $ Request To cart
990-0070-532M 532 nm 1573 $ Request To cart
990-0070-1064M 1064 nm 1573 $ Request To cart

For Femtosecond Applications

Zero order optically contacted half waveplate is housed in Motorized Rotation Stage 960-0161 and Polarizer with adapter in Kinematic Optical Mount 840-0193 for femtosecond laser application (laser damage threshold: > 10 mJ/cm², 50 fs pulse, 800 nm, typical)

Code Wavelength Price Delivery Add to cart
990-0070-343M 343 nm 1782 $ Request To cart
990-0070-400M 400 nm 1672 $ Request To cart
990-0070-400BM 390-410 nm 1837 $ Request To cart
990-0070-515M 515 nm 1672 $ Request To cart
990-0070-515BM 505-525 nm 1837 $ Request To cart
990-0070-800M 800 nm 1672 $ Request To cart
990-0070-800BM 780-820 nm 1837 $ Request To cart
990-0070-1030M 1030 nm 1672 $ Request To cart
990-0070-1030BM 1010-1050 nm 1837 $ Request To cart

For High Power Femtosecond Laser Applications

Zero order air-spaced half waveplate  is housed in Motorized Rotation Stage 960-0161 and Polarizer with adapter in Kinematic Optical Mount 840-0193 for high power femtosecond laser application (laser damage threshold: > 100 mJ/cm², 50 fs pulse, 800 nm typical)

Code Wavelength Price Delivery Add to cart
990-0070-266HM 266 nm 1980 $ Request To cart
990-0070-343HM 343 nm 1865 $ Request To cart
990-0070-400HM 400 nm 1755 $ Request To cart
990-0070-400HBM 390-410 nm 1920 $ Request To cart
990-0070-515HM 515 nm 1755 $ Request To cart
990-0070-515HBM 505-525 nm 1920 $ Request To cart
990-0070-800HM 800 nm 1755 $ Request To cart
990-0070-800HBM 780-820 nm 1920 $ Request To cart
990-0070-1030HM 1030 nm 1755 $ Request To cart
990-0070-1030HBM 1010-1050 nm 1920 $ Request To cart

Note: Controllers and Power supllies should be ordered separately.

Delicious

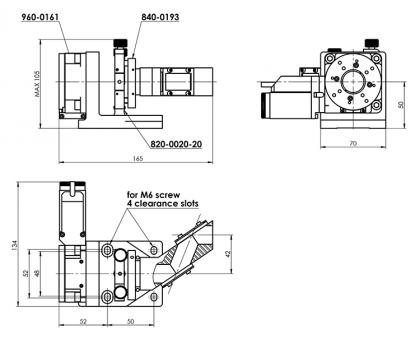

solidworks Motorized Variable Attenuator - Solidworks file
