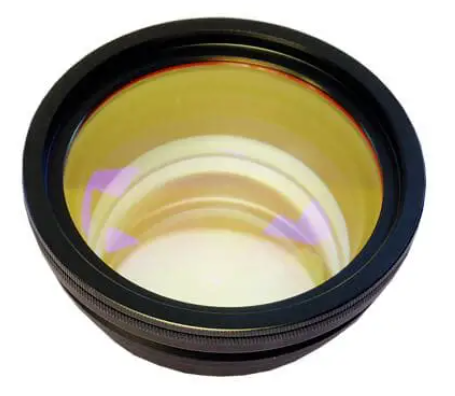

F-Theta Lens for 355 nm

F-Theta Lens for 355 nm

F-Theta Lens for third harmonic (355 nm) of Nd:YAG laser.

1023 $
delivery Estimated delivery time: 4 - 5 days
Products
Brochures
Description
Wavelength - 355 nm
Screw size: M85x1, Best mirror place m1/m2: 16/16 mm; Max. scan angle Θ=±28°
Code Wavelength, nm Focus length, mm Working distance S, mm Max. scan area, mm2 Input beam diameter, mm Spot size, µm Drawing Price Delivery Add to cart
150-1003 355 100 126 70x70 7 10 B 1023 $ 4 - 5 days
150-1603 355 160 199 110x110 7 15 A 1023 $ 3 - 4 days
F-Theta Lens Brochure
308.29 kB
download PDF
  • Designed for 355 nm wavelength
  • Other wavelengths of 1064 nm or 532 nm are available
  • Lens diameter - 90 or 104 mm

The F-Theta Lens is designed to provide a flat field on the image plane for scanning and engraving applications where a high power laser and set of rotating mirrors are used to scan across a given field.
