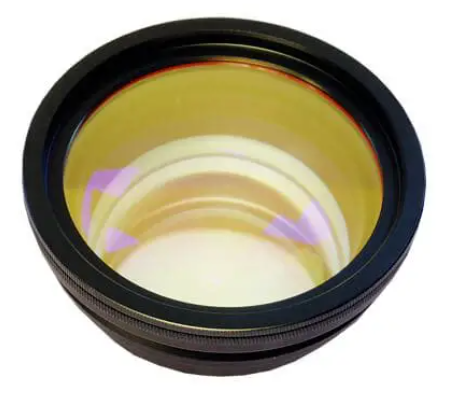

F-Theta Lens for 1064 nm

F-Theta Lens for 1064 nm

F-Theta Lens for Nd:YAG Laser fundamental (1064 nm) wavelength.

from 462 $
delivery Estimated delivery time: 4 - 5 days
Products
Brochures
Description
Focus length
Working distance
Scan field
Max. Scan angle
Spot size
Remove all filters
Lens Diameter - 90 mm
Code Focus length Working distance Scan field Max. Scan angle Spot size Price Delivery Add to cart
150-1001 100 mm 115 mm 70x70 mm2 ±28° 16 µm 462 $ 4 - 5 days
150-1601 160 mm 176 mm 110x110 mm2 ±28° 26 µm 462 $ 4 - 5 days
150-2101 210 mm 230 mm 145x145 mm2 ±28° 34 µm 462 $ 4 - 5 days
150-2541 254 mm 284 mm 175x175 mm2 ±28° 31 µm 462 $ 3 - 4 days
150-2901 290 mm 324 mm 200x200 mm2 ±28° 31 µm 462 $ 4 - 5 days
150-3301 330 mm 346 mm 220x220 mm2 ±28° 40 µm 462 $ 4 - 5 days
150-4201 420 mm 467 mm 300x300 mm2 ±28° 50 µm 462 $ Request
Lens Diameter - 104 mm
Code Focus length Working distance Scan field Max. Scan angle Spot size Price Delivery Add to cart
151-1631 163 mm 185 mm 110x110 mm2 ±28° 17 µm 572 $ 4 - 5 days
151-2101 210 mm 255 mm 150x150 mm2 ±28° 24 µm 572 $ 4 - 5 days
151-2541 254 mm 285 mm 175x175 mm2 ±28° 31 µm 572 $ 3 - 4 days
151-4201 420 mm 467 mm 300x300 mm2 ±28° 55 µm 572 $ Request
151-6501 650 mm 697 mm 400x400 mm2 ±25° 85 µm 572 $ Request
F-Theta Lens
308.29 kB
download PDF
  • Designed for Nd:YAG laser 1064 nm
  • F-theta lenses for 532 nm or 355 nm are also available
  • Lens diameter of 90 or 104 mm

F-Theta lenses are designed to provide a flat field on the image plane for scanning and engraving applications where a high power laser and set of rotating mirrors are used to scan across a given field.
