High Power Laser Mirrors for Femtosecond Applications

High Power Laser Mirrors for Femtosecond Applications

New ultra high damage threshold laser mirrors are designed for applications with femtosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths include 515 nm, 800 nm,… Read more →

From $142 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Listed in

Configure & order — pick a catalog variant or configure your own

Wavelength Any
or
Size Any
or
AOI Any
or
R, % (s+p)/2 Any
Catalog band: 99.5–99.9 %
Manufacturable: 99.5–99.9 %
99.5 % 99.9 %
or %
LIDT Any
or
Material UV FS
62 catalog variants — refine the spec to narrow it down.
SKU Wavelength · Group · LIDT · Size · AOI · R, % (s+p)/2 · Material

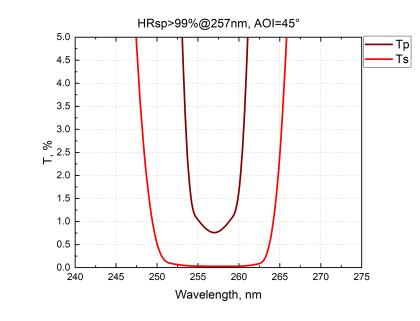

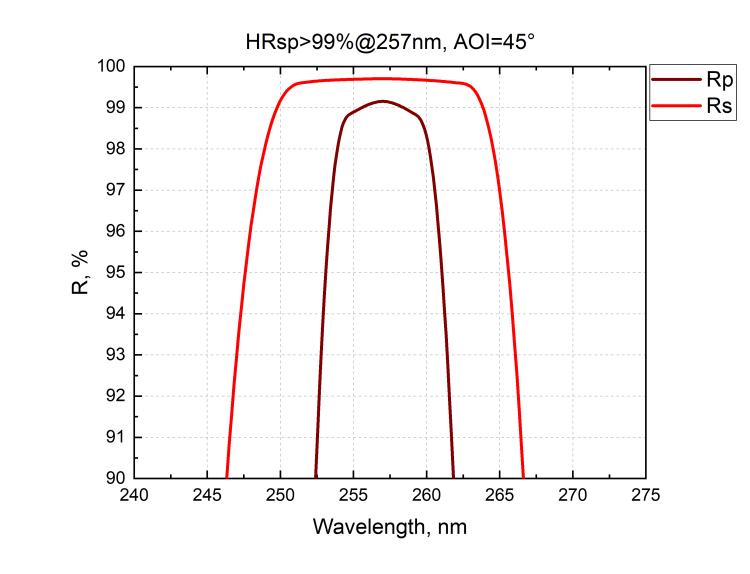

041-0257HHR 257 nm·Design wavelength – 257 nm, LIDT @ 257 nm, 200 fs, 1 kHz·>0.3 J/cm²·ø12.7 x 6 mm·45°·99.5%·UV FS
10 in stock Ships in: 2–5 calendar days
$174
041-0257HHR-i0 257 nm·>0.3 J/cm²·ø12.7 x 6 mm·0°·99.5%·UV FS
Out of stock Ships in: 58–61 calendar days
$174
041-0343HHR 333-353 nm·Design wavelength – 333-353 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.2 J/cm²·ø12.7 x 6 mm·45°·99.8%·UV FS
17 in stock Ships in: 2–5 calendar days
$174
041-0343HHR-i0 333-353 nm·>0.2 J/cm²·ø12.7 x 6 mm·0°·99.8%·UV FS
Out of stock Ships in: 58–61 calendar days
$174
041-0343PHR 343 nm·Design wavelength - 343 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø12.7 x 6 mm·45°·99.8%·UV FS
12 in stock Ships in: 2–5 calendar days
$174
041-0343PHR-i0 343 nm·Design wavelength - 343 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø12.7 x 6 mm·0°·99.8%·UV FS
9 in stock Ships in: 2–5 calendar days
$174
041-0800T6HHR-i0-45 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.2 J/cm²·ø12.7 x 6 mm·0-45°·99.9%·UV FS
Out of stock Ships in: 62–65 calendar days
$142
041-0800T6UHHR 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø12.7 x 6 mm·45°·99.9%·UV FS
8 in stock Ships in: 2–5 calendar days
$203
041-0800T6UHHR-i0 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø12.7 x 6 mm·0°·99.9%·UV FS
Out of stock Ships in: 62–65 calendar days
$203
042-0257HHR 257 nm·Design wavelength – 257 nm, LIDT @ 257 nm, 200 fs, 1 kHz·>0.3 J/cm²·ø25.4 x 6 mm·45°·99.5%·UV FS
3 in stock Ships in: 2–5 calendar days
$222
042-0257HHR-i0 257 nm·Design wavelength – 257 nm, LIDT @ 257 nm, 200 fs, 1 kHz·>0.3 J/cm²·ø25.4 x 6 mm·0°·99.5%·UV FS
31 in stock Ships in: 2–5 calendar days
$222
042-0343HHR 333-353 nm·Design wavelength – 333-353 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.2 J/cm²·ø25.4 x 6 mm·45°·99.8%·UV FS
43 in stock Ships in: 2–5 calendar days
$222
042-0343HHR-i0 333-353 nm·Design wavelength – 333-353 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.2 J/cm²·ø25.4 x 6 mm·0°·99.8%·UV FS
17 in stock Ships in: 2–5 calendar days
$222
042-0343PHR 343 nm·Design wavelength - 343 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø25.4 x 6 mm·45°·99.8%·UV FS
47 in stock Ships in: 2–5 calendar days
$231
042-0343PHR-i0 343 nm·Design wavelength - 343 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø25.4 x 6 mm·0°·99.8%·UV FS
19 in stock Ships in: 2–5 calendar days
$231
042-0800HHR-i0-45 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.2 J/cm²·ø25.4 x 6 mm·0-45°·99.9%·UV FS
28 in stock Ships in: 2–5 calendar days
$180
042-0800UHHR 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø25.4 x 6 mm·45°·99.9%·UV FS
45 in stock Ships in: 2–5 calendar days
$244
042-0800UHHR-i0 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø25.4 x 6 mm·0°·99.9%·UV FS
18 in stock Ships in: 2–5 calendar days
$244
045-0257HHR 257 nm·Design wavelength – 257 nm, LIDT @ 257 nm, 200 fs, 1 kHz·>0.3 J/cm²·ø50.8 x 12 mm·45°·99.5%·UV FS
6 in stock Ships in: 2–5 calendar days
$508
045-0257HHR-i0 257 nm·Design wavelength – 257 nm, LIDT @ 257 nm, 200 fs, 1 kHz·>0.3 J/cm²·ø50.8 x 12 mm·0°·99.5%·UV FS
4 in stock Ships in: 2–5 calendar days
$508
045-0343HHR 333-353 nm·Design wavelength – 333-353 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.2 J/cm²·ø50.8 x 12 mm·45°·99.8%·UV FS
19 in stock Ships in: 2–5 calendar days
$508
045-0343HHR-i0 333-353 nm·>0.2 J/cm²·ø50.8 x 12 mm·0°·99.8%·UV FS
Out of stock Ships in: 58–61 calendar days
$508
045-0343PHR 343 nm·Design wavelength - 343 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø50.8 x 12 mm·45°·99.8%·UV FS
12 in stock Ships in: 2–5 calendar days
$525
045-0343PHR-i0 343 nm·Design wavelength - 343 nm, LIDT @ 343 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø50.8 x 12 mm·0°·99.8%·UV FS
Out of stock Ships in: 62–65 calendar days
$525
045-0800T12HHR-i0-45 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.2 J/cm²·ø50.8 x 12 mm·0-45°·99.9%·UV FS
17 in stock Ships in: 2–5 calendar days
$560
045-0800T12UHHR 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø50.8 x 12 mm·45°·99.9%·UV FS
8 in stock Ships in: 2–5 calendar days
$665
045-0800T12UHHR-i0 760-840 nm·Design wavelength - 760-840 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø50.8 x 12 mm·0°·99.9%·UV FS
1 in stock Ships in: 2–5 calendar days
$665
081-1417 1400-1700 nm·Design wavelength - 1400-1700 nm , LIDT @ 1550 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø12.7 x 6 mm·45°·99.8%·UV FS
Out of stock Ships in: 62–65 calendar days
$185
081-1417-i0 1400-1700 nm·Design wavelength - 1400-1700 nm , LIDT @ 1550 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø12.7 x 6 mm·0°·99.8%·UV FS
Out of stock Ships in: 62–65 calendar days
$185
081-1921 1900-2120 nm·>0.4 J/cm²·ø12.7 x 6 mm·45°·99.8%·UV FS
Out of stock Ships in: 58–61 calendar days
$196
081-1921-i0 1900-2120 nm·>0.4 J/cm²·ø12.7 x 6 mm·0°·99.8%·UV FS
Out of stock Ships in: 58–61 calendar days
$196
081-7288HHR 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø12.7 x 6 mm·45°·99.8%·UV FS
2 in stock Ships in: 2–5 calendar days
$159
081-7288HHR-i0 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø12.7 x 6 mm·0°·99.9%·UV FS
16 in stock Ships in: 2–5 calendar days
$159
081-9311HHR 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø12.7 x 6 mm·45°·99.8%·UV FS
17 in stock Ships in: 2–5 calendar days
$164
081-9311HHR-i0 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø12.7 x 6 mm·0°·99.8%·UV FS
18 in stock Ships in: 2–5 calendar days
$164
081-9611HHR 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.35 J/cm²·ø12.7 x 6 mm·45°·99.9%·UV FS
3 in stock Ships in: 2–5 calendar days
$164
081-9611HHR-i0 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø12.7 x 6 mm·0°·99.9%·UV FS
6 in stock Ships in: 2–5 calendar days
$164
082-1417 1400-1700 nm·Design wavelength - 1400-1700 nm , LIDT @ 1550 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø25.4 x 6 mm·45°·99.8%·UV FS
12 in stock Ships in: 2–5 calendar days
$245
082-1417-i0 1400-1700 nm·Design wavelength - 1400-1700 nm , LIDT @ 1550 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø25.4 x 6 mm·0°·99.8%·UV FS
5 in stock Ships in: 2–5 calendar days
$245
082-1921 1900-2120 nm·Design wavelength - 1900-2120 nm , LIDT @ 2000 nm, 50 fs, 100 Hz·>0.4 J/cm²·ø25.4 x 6 mm·45°·99.8%·UV FS
2 in stock Ships in: 2–5 calendar days
$263
082-1921-i0 1900-2120 nm·Design wavelength - 1900-2120 nm , LIDT @ 2000 nm, 50 fs, 100 Hz·>0.4 J/cm²·ø25.4 x 6 mm·0°·99.8%·UV FS
3 in stock Ships in: 2–5 calendar days
$263
082-7288HHR-i0 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø25.4 x 6 mm·0°·99.9%·UV FS
26 in stock Ships in: 2–5 calendar days
$203
082-9311HHR 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø25.4 x 6 mm·45°·99.8%·UV FS
95 in stock Ships in: 2–5 calendar days
$228
082-9311HHR-i0 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø25.4 x 6 mm·0°·99.8%·UV FS
58 in stock Ships in: 2–5 calendar days
$228
082-9611HHR 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø25.4 x 6 mm·45°·99.9%·UV FS
94 in stock Ships in: 2–5 calendar days
$228
082-9611HHR-i0 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø25.4 x 6 mm·0°·99.9%·UV FS
23 in stock Ships in: 2–5 calendar days
$228
085-1417 1400-1700 nm·Design wavelength - 1400-1700 nm , LIDT @ 1550 nm, 50 fs, 100 Hz·>0.3 J/cm²·ø50.8 x 12 mm·45°·99.8%·UV FS
4 in stock Ships in: 2–5 calendar days
$665
085-1417-i0 1400-1700 nm·>0.3 J/cm²·ø50.8 x 12 mm·0°·99.8%·UV FS
Out of stock Ships in: 58–61 calendar days
$665
085-1921 1900-2120 nm·Design wavelength - 1900-2120 nm , LIDT @ 2000 nm, 50 fs, 100 Hz·>0.4 J/cm²·ø50.8 x 12 mm·45°·99.8%·UV FS
2 in stock Ships in: 2–5 calendar days
$694
085-1921-i0 1900-2120 nm·Design wavelength - 1900-2120 nm , LIDT @ 2000 nm, 50 fs, 100 Hz·>0.4 J/cm²·ø50.8 x 12 mm·0°·99.8%·UV FS
4 in stock Ships in: 2–5 calendar days
$694
085-7288T12HHR 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø50.8 x 12 mm·45°·99.8%·UV FS
17 in stock Ships in: 2–5 calendar days
$686
085-7288T12HHR-i0 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø50.8 x 12 mm·0°·99.9%·UV FS
5 in stock Ships in: 2–5 calendar days
$686
085-9311HHR 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø50.8 x 12 mm·45°·99.8%·UV FS
3 in stock Ships in: 2–5 calendar days
$689
085-9311HHR-i0 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø50.8 x 12 mm·0°·99.8%·UV FS
2 in stock Ships in: 2–5 calendar days
$689
085-9611HHR 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø50.8 x 12 mm·45°·99.9%·UV FS
9 in stock Ships in: 2–5 calendar days
$689
085-9611HHR-i0 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø50.8 x 12 mm·0°·99.9%·UV FS
6 in stock Ships in: 2–5 calendar days
$689
087-7288HHR 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø76.2 x 15 mm·45°·99.8%·UV FS
Out of stock Ships in: 62–65 calendar days
$861
087-7288HHR-i0 720-880 nm·Design wavelength - 720-880 nm, LIDT @ 800 nm, 50 fs, 100 Hz·>0.15 J/cm²·ø76.2 x 15 mm·0°·99.9%·UV FS
Out of stock Ships in: 62–65 calendar days
$861
087-9311HHR 930-1130 nm·Design wavelength - 930-1130 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.3 J/cm²·ø76.2 x 15 mm·45°·99.8%·UV FS
Out of stock Ships in: 62–65 calendar days
$1,575
087-9311HHR-i0 930-1130 nm·>0.3 J/cm²·ø76.2 x 15 mm·0°·99.8%·UV FS
Out of stock Ships in: 58–61 calendar days
$1,575
087-9611HHR 960-1100 nm·Design wavelength - 960-1100 nm , LIDT @ 1030 nm, 200 fs, 100 Hz·>0.4 J/cm²·ø76.2 x 15 mm·45°·99.9%·UV FS
1 in stock Ships in: 2–5 calendar days
$1,575
087-9611HHR-i0 960-1100 nm·>0.4 J/cm²·ø76.2 x 15 mm·0°·99.9%·UV FS
Out of stock Ships in: 58–61 calendar days
$1,575

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Substrate

Material UV grade fused silica
S1 Surface flatness λ / 10 at 633 nm
S1 Surface quality 20-10 scratch&dig (MIL-PRF-13830B)
S2 Surface quality Commercial polish
Diameter tolerance +0.00 mm / -0.12 mm
Thickness tolerance ±0.25 mm
Wedge < 3 min
Chamfer 0.3 mm at 45° typical

Coating

Technology Ion Beam Sputtering (IBS)
Adhesion and Durability Per MIL-C-675A, Insoluble in lab solvents
Clear apterture Exceeds 85% of diameter
Coated surface flatness λ / 8 at 633 nm over 80% of diameter
Laser Induced Damage Threshold Measured at design wavelength, 50 fs pulse, 100 Hz
Group Delay Dispersion |GDD| < 30 fs²

Classification

Line femtoline

Description

New ultra high damage threshold laser mirrors are designed for applications with femtosecond lasers. These mirrors are produced using advanced IBS coating technology. Mirrors design wavelengths include 515 nm, 800 nm, 1030 nm and broadband 720-880 nm range with reflection values R>99.8%.

Laser induced damage threshold was measured at mirror design wavelength with 50 fs pulse, 100 Hz under ISO standard 21254-2 1000-on-1 conditions.

Downloads

PDF
EKSMA_Optics_High_Power_IBS_Coated_Laser_Mirrors_Femtoline.pdf PDF · 127 KB
